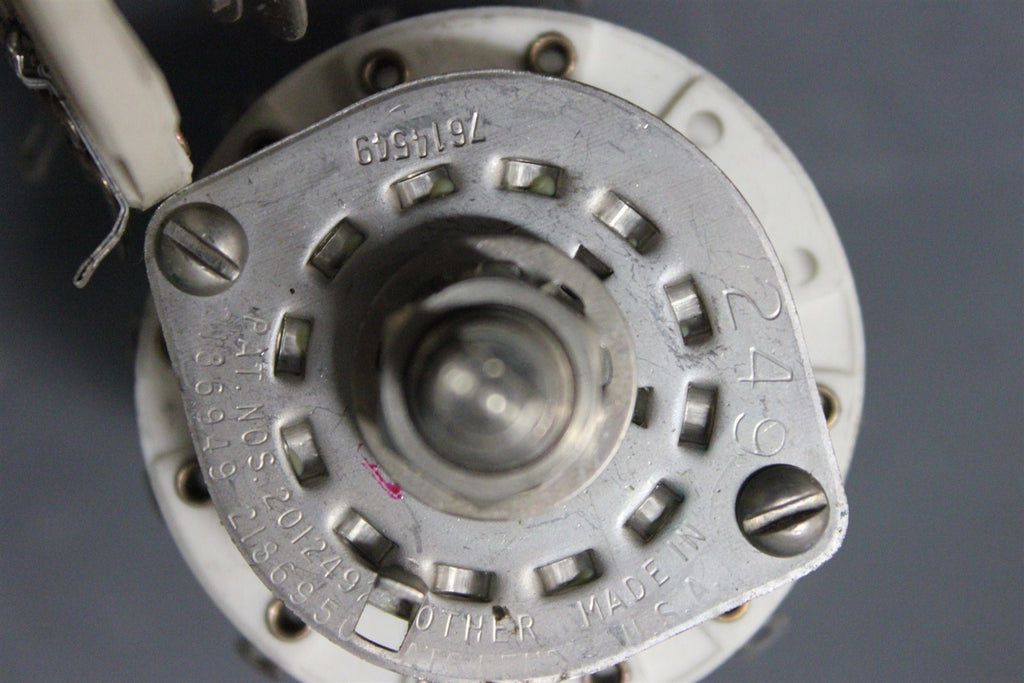

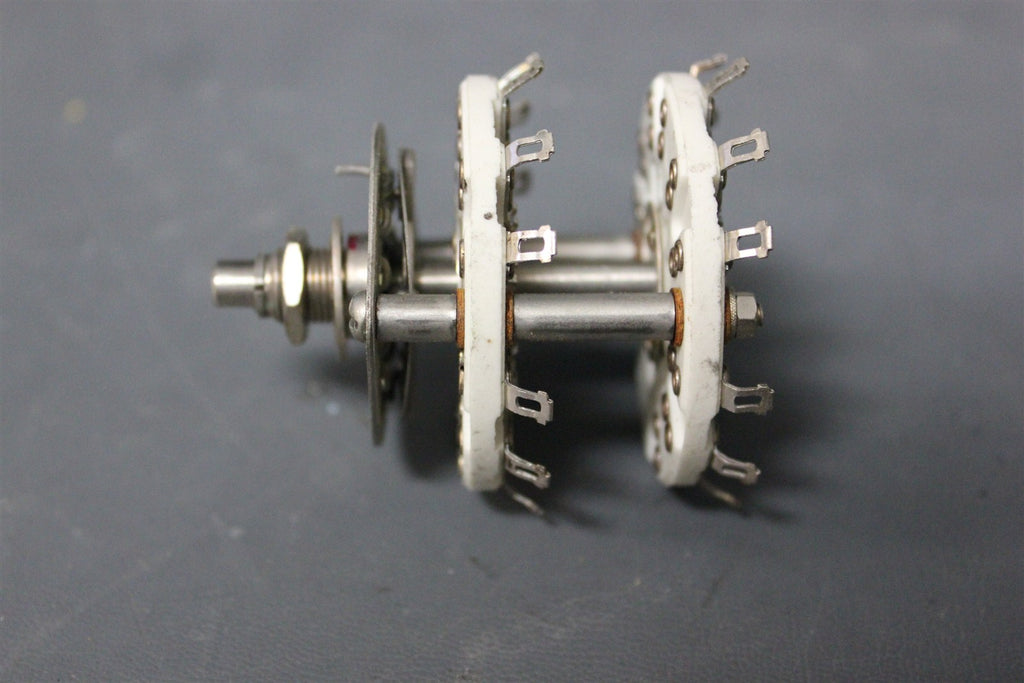

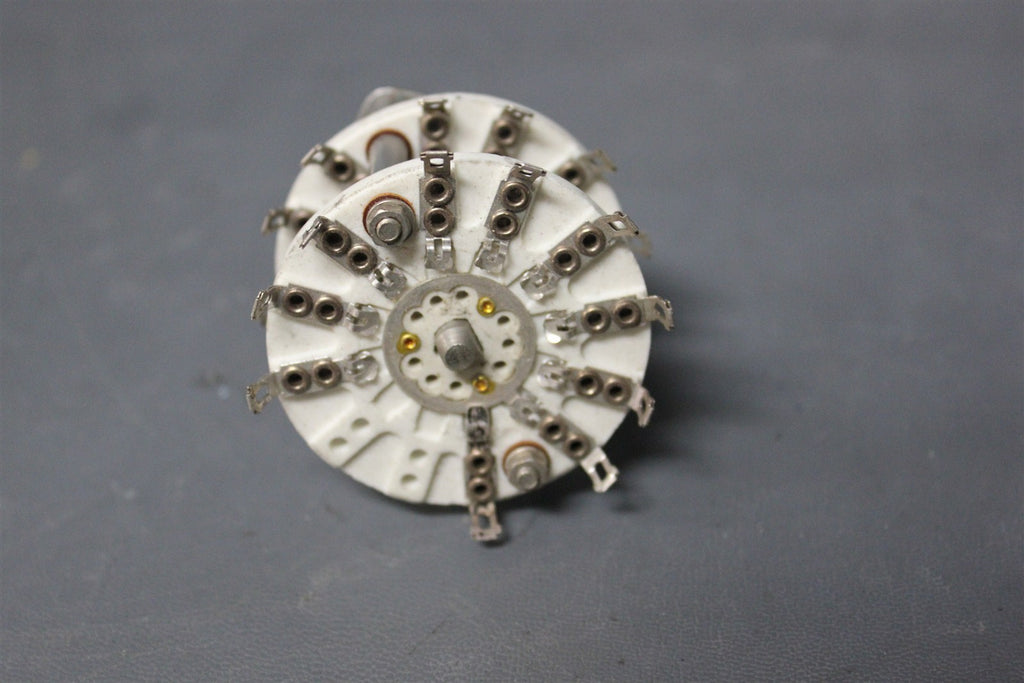

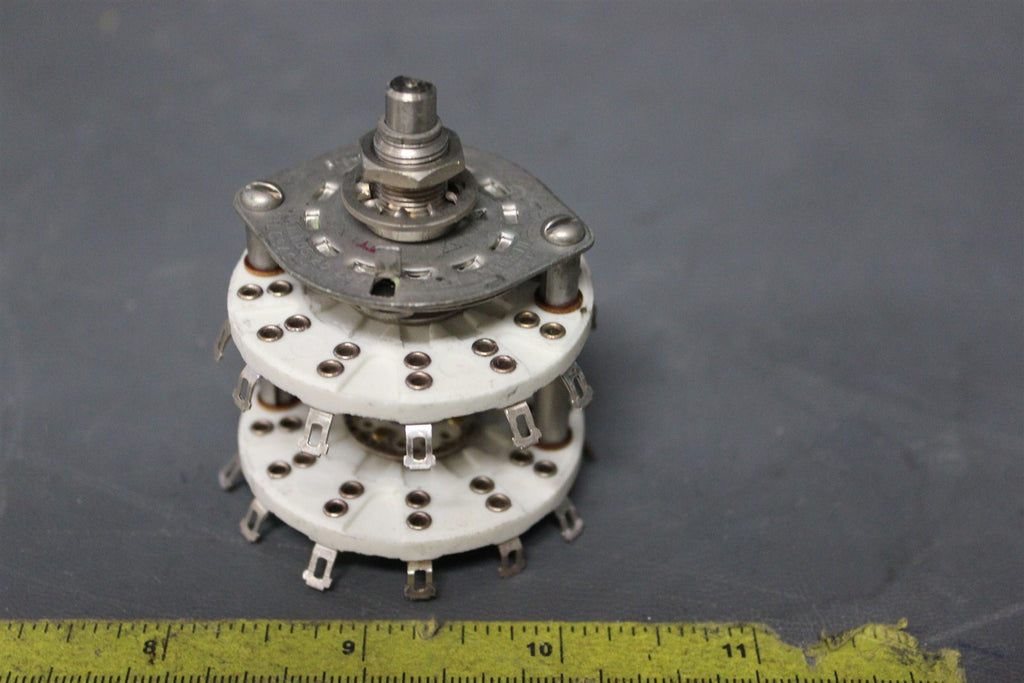

VINTAGE NOS OAK ROTARY SWITCH 7614549

OAK

VINTAGE NOS OAK ROTARY SWITCH 7614549

$17.99


VINTAGE NOS OAK ROTARY SWITCH.

PN:  7614549

Techincal Specification:
CONTACT LOAD CURRENT RATING 1.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL
CONTACT LOAD CURRENT RATING 500.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL
CONTACT SWITCHING ACTION MAKES BEFORE BREAKS EACH SECTION REAR
CONTACT VOLTAGE RATING IN VOLTS 110.0 AC AT SEA LEVEL
CONTACT VOLTAGE RATING IN VOLTS 28.0 DC AT SEA LEVEL
FIRST FLAT LENGTH 0.188 INCHES NOMINAL SINGLE ACTUATOR
FLAT HEIGHT 0.188 INCHES NOMINAL SINGLE ACTUATOR
MOUNTING METHOD THREADED BUSHING SINGLE MOUNTING FACILITY
NOMINAL THREAD SIZE 0.375 INCHES SINGLE MOUNTING FACILITY
NONTURN DEVICE RADIUS 0.531 INCHES NOMINAL AT 10:30 O'CLOCK
NONTURN DEVICE TYPE TAB AT 10:30 O'CLOCK
OVERALL DIAMETER 1.852 INCHES NOMINAL
INDIVIDUAL SECTION QUANTITY 2
SHAFT DIAMETER 0.250 INCHES NOMINAL SINGLE ACTUATOR
SHAFT LENGTH 0.625 INCHES NOMINAL SINGLE ACTUATOR
SHAFT TYPE ROUND, FLATTED SINGLE ACTUATOR
OVERALL LENGTH 2.500 INCHES NOMINAL
POLE QUANTITY 1 EACH SECTION REAR
PRECIOUS MATERIAL AND LOCATION CONTACTS AND ROTOR BLADE SURFACES SILVER
PRECIOUS MATERIAL SILVER
STYLE DESIGNATOR CIRCULAR WAFER, BUSHING MOUNT
SWITCH ACTUATOR INDEXING POSITION QUANTITY 10 SINGLE ACTUATOR
SWITCH ACTUATOR POSITIONING INCREMENT 30.0 DEGREES SINGLE ACTUATOR
SWITCH ACTUATOR STOP DEVICE TYPE FIXED STOP SINGLE ACTUATOR
SWITCH CONTACT BASIC DESIGN NONPILE-UP SYMMETRICAL
TERMINAL TYPE TAB, SOLDER LUG
THREAD CLASS 2A SINGLE MOUNTING FACILITY
THREAD LENGTH 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY
THREAD SERIES DESIGNATOR UNEF SINGLE MOUNTING FACILITY
THROW QUANTITY 10 EACH SECTION REAR

GUARANTEED TO BE IN WORKING ORDER UPON ARRIVAL.
