PALM INDUSTRIAL

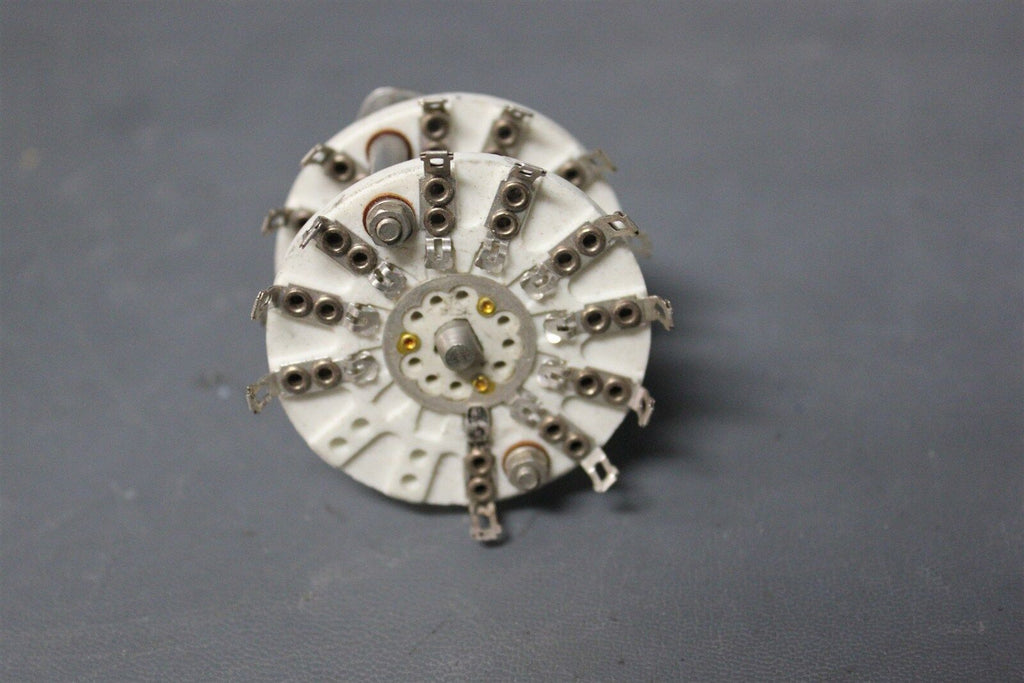

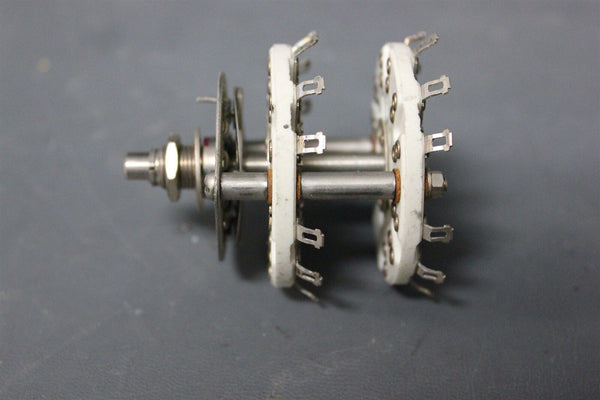

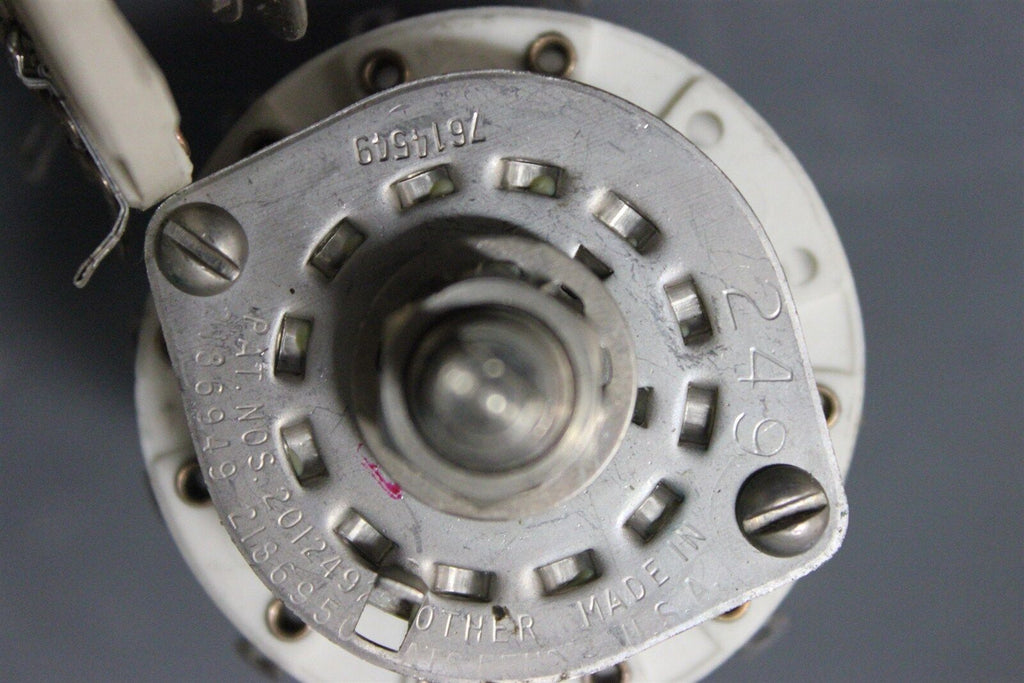

VINTAGE NOS OAK ROTARY SWITCH 7614549
PN: 7614549
Techincal Specification:
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 500.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL |
| CONTACT SWITCHING ACTION | MAKES BEFORE BREAKS EACH SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 110.0 AC AT SEA LEVEL |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL |
| FIRST FLAT LENGTH | 0.188 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.188 INCHES NOMINAL SINGLE ACTUATOR |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL AT 10:30 O'CLOCK |
| NONTURN DEVICE TYPE | TAB AT 10:30 O'CLOCK |
| OVERALL DIAMETER | 1.852 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 2 |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.625 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| POLE QUANTITY | 1 EACH SECTION REAR |
| PRECIOUS MATERIAL AND LOCATION | CONTACTS AND ROTOR BLADE SURFACES SILVER |
| PRECIOUS MATERIAL | SILVER |
| STYLE DESIGNATOR | CIRCULAR WAFER, BUSHING MOUNT |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 10 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 30.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| THROW QUANTITY | 10 EACH SECTION REAR |
